MounterSMT-64RH Compact Mounter

Mounter

Features

  • 0402 Chip components can be mounted with narrow adjoining (gap 95 μm).

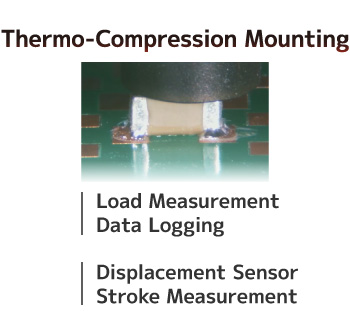

  • You can carry out the mounting experiment using the displacement sensor and pressure control.
  • Continuous operation of coating → mounting can be done by adding dispense head.
  • You can observe the moment of mounting from the side and still picture shooting.
  • It is easy to set up with built-in frame structure and built-in controller which guarantees high precision.

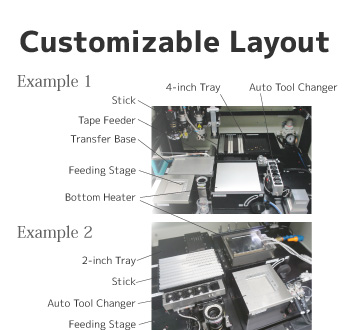

  • Functions such as coating and loading can be combined or sorted according to the application.
    • Ex.1) For coating only
    • Ex.2) For exclusive use
    • Ex.3) For continuous operation of coating and mounting

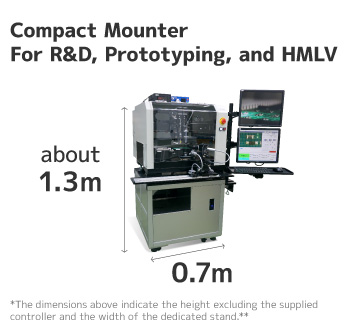

  • It is desktop compact size.

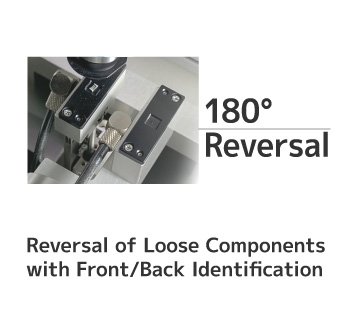

  • It can also be used as a simple die bonder or flip chip bonder.
  • 0201 chip mounted correspondence.

Spec

Dimension of target substrate (W*D) 30*50 to 200*300 [mm] (layout option available)
Target substrate thickness 1.0 to 3.2 [mm] (Necessary backup pins on board)
Mounting Tact About 3.5 seconds between tip stick and substrate
Repeat stop accuracy Automatic image processing: ± 0.04 [mm] (0402 and 0603 is another option)
Stage Alignment: ± 0.05 [mm] (20□QFP)
Mounting angle 0 °, 90 °, 180 °, 270 ° (resolution 0.036 (degree / pulse))
Manual operation resolution X ? Y ? Z 2 [μm / pulse]
5 axis control Precision ball screw
Mountable parts 0201 ? 0402 ? 0603 ? 1005 ~ QFP ? BGA ? CSP / connector / solder ball
Mountable part height 10 mm or less

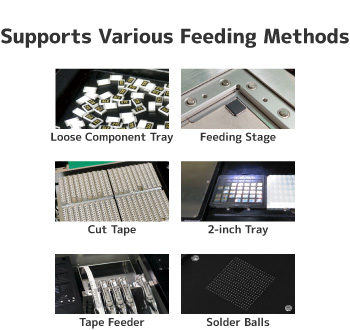

Target component packaging 8 mm wide, scrap tape, rose state, palette
Substrate positioning method Left hand external reference reference, slide bar variable
Number of chip sticks that can be installed simultaneously 20 types (in case of 8 mm width tape conversion / work size 250 × 330)
Power supply / power consumption AC 100 V ± 10% / 50/60 Hz / 1.2 KVA
Air pressure 0.4 MPa to 0.6 Mpa ? dry air
Head X ? Y stroke range A range of 335 × 420 [mm]
Drive system Pulse motor
controller Back built-in
computer Built-in personal computer / 17 inch color monitor
Work holder Front reference single end sliding type
Alignment Stage Motor slide method
Tool change Bit 5 auto exchange (All bits are optional)
Body dimensions Width 700 × depth 740 × height 600 [mm]

Option

High magnification camera for fine parts Solder ball mounting Pallet parts supply basis
On-board pressure control Work base with suction function Equipment level control
Automatic image processing for chip parts Z axis gradient motion Various suction bits (nozzle ? collet)
Image shooting Auto dispense function Various control software
Flux Transfer Safety sensor ? patrite
